Agarwal, Fulari, Agrawal, Agrawal, Shetti, and Kagi: Accuracy and reliability of linear measurements on digital models derived from CBCT and 3D laser scanned impressions


Introduction

Orthodontic study models are essential diagnostic record which is accurate plaster reproduction of teeth & supporting structures. Study models provide a three-dimensional view of occlusion enabling visualization and aids inaccurate measurements to be made in the dental arch. It is used to classify malocclusion and formulate a treatment plan. Although traditional plaster study models have been used for many years, they have many limitations. Often and continued use and any mishandling with these models can lead to their wear off or even breakages, decreasing accuracy and increasing the likelihood of fracture. Also, the storage of plaster study models requires a huge stockroom, which might not be affordable in all clinical setups. Hence many clinicians either do not opt for taking study models or if taken do not store them for a longer period. These records must be preserved for a minimum period of three years from the date of commencement of the treatment in a format determined by the Council or accepted as a standard mode of documentation.1

To address the storage and maintenance fallout with plaster study models, Orthodontists may be required to convert all their treatment records to digital form. Recent advancements in technology have allowed the generation of digital study models where three-dimensional images of models can be analyzed on computer software. This area of digital dentistry helps to improve efficiency and maximize treatment outcomes.2

In this digital world, the introduction of e-models or digital models has substituted the traditional plaster models overcoming the storage and maintenance problem.3 Reviewing the advantages of the digital models, their accuracy and reliability need to be assessed and compared with traditional gold standard plaster study models frames the basis for the need of our study.

With this background in mind, this study was aimed to analyze and statistically compare linear measurements of plaster models with digital models obtained from CBCT of a patient as well as with laser-scanned rubber base impression of a patient.

Aim

To compare the accuracy and reliability of linear measurements on digital models derived from Cone Beam Computed Tomography (CBCT) and three dimensional (3D) laser-scanned impressions with conventional plaster models.

Objectives

  1. To compare the accuracy and reliability of measurements made on Plaster and CBCT derived digital models.

  2. To compare the accuracy and reliability of measurements made on Plaster and 3- dimensional laser-scanned impression models.

  3. To compare the accuracy and reliability of measurements made on CBCT models and 3D laser scanned impression models.

Materials and Methods

12 Patients reporting to the Department of Orthodontics from age group ranging from 18-30 years were selected for the study.

The inclusion criteria were -

  1. Presence of all permanent teeth from ‘Second Molar to Second Molar’ in both upper and lower arch

  2. Mild crowding ranging from 2-5mm with no history of previous orthodontic treatment.

Figure 1
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/8c268d78-d1bb-4f73-a407-7354087778bfimage1.png

For clinical data collection, tray sizes were selected and impressions using DMG Honigum, a light body addition Silicone putty impression material was taken of the maxillary and mandibular arch. The selected impressions were disinfected with 2% glutaraldehyde; labeled and wrapped in a plastic bag and delivered to the laboratory for the scanning process. After making impressions, on the same day patient was sent for a CBCT scan for diagnosis and to derive a digital model. Impressions were scanned with dental scanner Medit Identica blue, Seoul, Korea of 1.3-megapixel twin camera. Post scanning, the impressions were poured in Orthokal for preparation of study models.

Digital models derived from CBCT and laser scanned impressions were obtained in STL format which was compatible with MESHlab software and was assessed for virtual measurements on a computer. A digital caliper was used to measure plaster models. Eighteen measurements were measured on each model, in each of three planes. All the measurements were recorded to the nearest of 0.01mm. All the measurements were repeated after 30 days for intraobserver reliability. The landmarks and measurements used in the study are tabulated in Table 1.

All the eighteen measurements of 12 patients of the plaster model, laser-scanned models, and CBCT derived digital models were tabulated in a Microsoft Excel sheet. After 30 days, all the measurements of 12 patients were repeated for intraobserver error. Statistical analysis was done using SPSS V22.0 at a level of significance at 0.05. Linear measurements of plaster models, laser-scanned digital models, and CBCT derived digital models were analyzed employing one way ANOVA test followed by Post Hoc Tukey comparisons were tested at p ≤0.05 level., and method error for pairwise comparison.

Figure 2
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/8c268d78-d1bb-4f73-a407-7354087778bfimage2.png
Figure 3

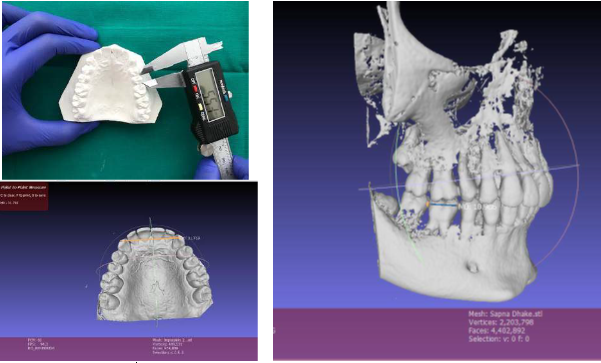

Measurements on plaster model and digital models derived from laser scanned impressions and CBCT scan

https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/8c268d78-d1bb-4f73-a407-7354087778bfimage3.png
Table 1

landmarks & measurements used in the study

Measurement

Definitions

Mesiodistal width

Maximum distance between the mesial and distal contact points of the second premolars and first molars

Arch-width

Segment 1

Distance between the crown tips of the canines

Segment 2

Distance between the lingual cusp tips of the first premolars

Segment 3

Distance between the most buccal points of buccal surface of the first molars in line with the buccal groove

Arch-length

Segment 1

Distance between the mesial contact point of central incisors and the distal contact points of canines

Segment 2

Distance between the mesial contact point of central incisors and the mesial contact points of the second molars

Table 2

Mean difference of CBCT, laser and plaster models

Mean ±SD

P Sig.

Measurement

CBCT

Laser

Plaster

Total

Mesiodistal width

1.

Maxillary premolar

6.73±0.36

6.63±0.49

6.23±0.34

6.53±0.45

0.012*

2.

Maxillary molar

10.53±0.76

10.45±0.65

10.23±0.35

10.40±0.61

0.481

3.

Mandibular premolar

7.24±0.53

7.21±0.32

6.86±0.28

7.10±0.42

0.043*

4.

Mandibular molar

10.91±0.50

10.88±0.45

10.51±0.51

10.77±0.51

0.09

Maxillary arch width

5.

Maxillary canines

35.42±2.61

35.18±2.44

35.30±2.81

35.30±2.55

0.975

6.

Maxillary premolars

30.89±2.63

31.06±2.79

30.75±2.44

30.90±2.55

0.958

7.

Maxillary molars

54.22±2.71

54.10±2.53

53.85±2.58

54.05±2.54

0.938

Mandibular arch width

8.

Mandibular canines

25.76±2.71

25.52±2.42

25.16±2.75

25.48±2.57

0.855

9.

Mandibular premolars

27.75±2.39

27.59±2.31

27.19±2.29

27.51±2.27

0.83

10.

Mandibular molars

47.10±3.44

46.94±3.41

47.21±3.35

47.08±3.30

0.982

Maxillary arch length

11.

Midline to 13 distal

23.07±1.56

22.53±1.44

22.49±1.32

22.70±1.42

0.552

12.

Midline to 23 distal

22.86±1.56

22.05±1.42

22.39±1.42

22.43±1.47

0.414

13.

Midline to 17 mesial

45.71±1.86

45.20±1.62

44.59±1.81

45.17±1.78

0.308

14.

Midline to 27 mesial

45.20±1.77

44.81±1.71

44.68±1.41

44.96±1.62

0.521

Mandibular arch length

15.

Midline to 33 distal

17.43±0.67

17.13±0.86

16.72±0.78

17.09±0.81

0.094

16.

Midline to 43 distal

16.75±0.92

16.81±1.14

16.85±0.68

16.80±0.90

0.971

17.

Midline to 37 mesial

40.17±1.45

39.82±1.45

39.83±1.37

39.94±1.39

0.793

18.

Midline to 47 mesial

40.27±1.94

39.97±1.71

39.92±1.51

40.06±1.69

0.863

Table 3

Comparison of mean differences

Laser - Plaster

CBCT- Laser

CBCT- Plaster

Measurement

Mean

P Sig.

Mean

P Sig.

Mean

P Sig.

Mesiodistal width

1.

Maxillary premolar

0.3997

0.055

0.10049

0.818

0.5002

0.013*

2.

Maxillary molar

0.2203

0.655

0.07302

0.954

0.2933

0.476

3.

Mandibular premolar

0.3509

0.084

0.02276

0.989

0.3736

0.062

4.

Mandibular molar

0.3768

0.158

0.03054

0.987

0.4073

0.118

Maxillary arch width

5.

Maxillary canines

-0.1218

0.993

0.2404

0.973

0.1186

0.993

6.

Maxillary premolars

0.3144

0.954

-0.1702

0.986

0.1442

0.99

7.

Maxillary molars

0.2533

0.969

0.1185

0.993

0.3718

0.935

Mandibular arch width

8.

Mandibular canines

0.3636

0.939

0.2353

0.974

0.5990

0.843

9.

Mandibular premolars

0.3999

0.907

0.1663

0.983

0.5663

0.823

10.

Mandibular molars

-0.2662

0.98

0.1575

0.993

-0.1086

0.997

Maxillary arch length

11.

Midline to 13 distal

0.03606

0.998

0.5416

0.631

0.5777

0.593

12.

Midline to 23 distal

-0.3346

0.843

0.8036

0.384

0.4689

0.717

13.

Midline to 17 mesial

0.61252

0.676

0.5138

0.758

1.1263

0.277

14.

Midline to 27 mesial

0.1314

0.979

0.5910

0.653

0.7224

0.532

Mandibular arch length

15.

Midline to 33 distal

0.4141

0.4

0.2953

0.623

0.7094

0.049*

16.

Midline to 43 distal

-0.0386

0.994

-0.0528

0.989

0.09153

0.969

17.

Midline to 37 mesial

-0.00515

1

0.3473

0.823

0.3421

0.828

18.

Midline to 47 mesial

0.05087

0.997

0.3037

0.903

0.3546

0.871

Table 4

Intraclass correlation coefficient

Measurem-Ents

CBCT (C)

Laser (L)

Plaster (P)

Reproducibility

Mesiodistal width

1.

Maxillary premolar

0.977

0.977

0.988

P

2.

Maxillary molar

0.988

0.988

0.978

L

3.

Mandibular premolar

0.978

0.996

0.988

L

4.

Mandibular molar

0.986

0.998

0.988

L

Maxillary Arch Width

5.

Maxillary canines

0.987

0.997

0.988

L

6.

Maxillary premolars

0.999

0.996

0.977

C

7.

Maxillary molars

0.978

0.978

0.977

C=L

Mandibular Arch Width

8.

Mandibular Canines

0.977

0.977

0.977

C=L=P

9.

Mandibular Premolars

0.988

0.988

0.977

C=L

10.

Mandibular molars

0.998

0.977

0.977

C

Maxillary Arch Length

11.

Midline to 13 distal

0..988

0.998

0.998

L=P

12.

Midline to 23 distal

0.977

0.998

0.998

L=P

13.

Midline to 17 mesial

0.977

0.998

0.998

L=P

14.

Midline to 27 mesial

0.977

0.998

0.998

L=P

Mandibular Arch Length

15.

Midline to 33 distal

0.988

0.977

0.988

C=P

16.

Midline to 43 distal

0.988

0.998

0.988

L

17.

Midline to 37 mesial

0.997

0977

0.998

P

18.

Midline to 47 mesial

0.977

0.978

0.977

L

Results

According to the ANOVA test, the Mean value for the mesiodistal width of 'Maxillary Premolar' using CBCT is 6.73±0.36, using the laser is 6.63±0.49 and of plaster models 6.23±0.34. The P-value for mesiodistal width of ‘Maxillary Premolar’ is 0.012 which is statistically significant.

The mean value for the mesiodistal width of ‘Mandibular Premolar' using CBCT is 7.24±0.53, using the laser is 7.21±0.32, and of plaster model is 6.86±0.28. The P-value for mesiodistal width of ‘Mandibular Premolar’ is 0.043 which is statistically significant. The average Mean standard Deviation ranged from 0.42 to 3.30, amongst all the parameters. The highest mean difference of 0.982 was observed with measurements of mandibular molars, in Mandibular Arch width. There is no obvious pattern in the results and the differences are small. All the other parameters were statistically Non-Significant.

In the Post Hoc Tukey test, P values presented that, 2 out of 54 measurements (measurements amongst all groups), exhibited statistically significant differences (α ≤ 0.05). Most of the other mean differences in linear measurements among the groups were not statistically significant. (P ≥ 0.05). The mesiodistal width of the Maxillary premolar among the CBCT-Plaster group exhibited a statistical significance of 0.013. In the CBCT-Plaster group, the values of Midline to 33 distal, of Mandibular arch length exhibited a statistically significant value of 0.049. Among the CBCT-Plaster group, the Midline to 17 mesial, of Maxillary arch length, showed the highest mean difference value of 1.12 ± 0.27mm. Amongst all the parameters of the three groups, maxillary arch length measurements exhibited the highest mean difference and significantly high variation in its set of values. All other parameters were statistically insignificant.

In the CBCT model measurements, Maxillary canine measurement had the least error with 0.049, whereas measuring the midline to 13 distal incorporated maximum error in repeated measurements.

The intraclass correlation coefficient was done to assess the reliability of the measurements amongst the groups; Digital model of CBCT, impression scanned laser models, and plaster models. Though few parameters showed the least correlation values, these were yet with 'Near Complete Agreement. Thus it can be considered reliable.

Discussion

For many decades, plaster models have been the only way to accurately visualize and evaluate a patient's occlusion. However, plaster models are well known for being susceptible to breakage or fracture and difficulty in their storage, retrieval, transportation, and their use in telecommunication.4 Recently, the advancement of imaging and computer technology has introduced digital 3D models to the orthodontic specialty, which has overcome the limitations of traditional plaster models. With several competing modalities currently available, some authors have suggested that the profession should determine the best alternative to traditional plaster models.5

The accuracy of impressions obtained by addition silicone impression material is well proven and documented according to Shakila Fatema et al.6, 7 On basis of these studies, and better reproducibility of the dental structures, addition silicone rubber base impression (DMG Honigum putty) material was used in this study to take impressions of the maxillary and mandibular arch.

Studies were done on accuracy, validity, reliability, and reproducibility of linear dental measurements of digital models obtained from scans of ‘Alginate’ impressions and plaster models, results showed that digital models are valid, reliable, and reproducible methods to obtain dental measurements for diagnostic purposes.5, 8, 9 (Kim et al, 2014, Quimby et al, 2004, Tarazona et al, 2013). The literature suggests that little statistical and/or clinical differences exist between the two methods concerning utilizing the models for treatment planning.

In the present study, plaster models were chosen as the reference standard, although direct measurements on plaster models are inevitably associated with some degree of inaccuracy. We preferred to simulate the clinical situation where the practitioner routinely uses a caliper to perform direct measurements in the orthodontic office. Measurements made either manually on plaster models or digitally on a computer are subject to inter-examiner variability. Manual measurements with a digital caliper depend on the positioning of the ends of the caliper on the plaster model. For digital measurements, the examiner must indicate on a computer screen the 2 points to be connected as the tooth width. Although the examiner can rotate the digital model on the screen to accurately choose the 2 points that reflect the tooth width, the image is still 2-dimensional, even though the digital model is a real 3D model. The identification of points, axes, inclinations, and planes becomes more complicated and less reliable with 2-dimensional images. Interpretation and identification of landmarks are more difficult and somewhat subjective when using 2- dimensional images to calculate arch length.8

The mean differences calculated amongst all the three methods were statistically evaluated as significant if the values were less than 0.05. In our study, the mean differences with ‘Mesio-distal width of Maxillary Premolar’, ‘Mesio-distal width of Mandibular Premolar' and in the measurement of mandibular arch length, the values of ‘Midline to canine distal surface’ were found to be “Clinically Significant”.

The 'Interclass Correlation Coefficient (ICC)', was assessed for the reliability of the measurements. A perfect positive correlation value is 1.000, and no correlation is 0.000. It was assessed that values above 0.750 have excellent correlation, values above 0.400 can be considered to correlate well, and values below 0.400 do not show good correlation.9, 10 Our study had a maximum range of 0.999 and lowest 0.977, which was inferred to have excellent correlation, indicating a strong agreement in measurements with all the three types of models.

Results of the statistical analysis done, suggests that the discrepancy between the measurements acquired from digital models derived from CBCT and laser scan of impression, compared to the plaster models is sufficiently low. These differences do not make any difference in diagnostic purposes and are clinically acceptable. Schirmer and Wiltshire regarded a measurement difference between alternative measurement methods of less than 0.20 mm as clinically acceptable10 which is in accordance of our study. The reliability of measuring the mesiodital width of teeth on all three methods is clinically acceptable; this is consistent with the previous studies done by Stevens et al,11 Quimby et al,8 Luu et al12 and Naidu et al.13

In summary, the selection of the diagnostic record method by the clinician will ultimately depend heavily both on the clinical situation and economic factors. This study has presented a novel method of digitally recording study model data, offering the profession a valid alternative to the use of conventional plaster models and the potential to significantly reduce the burden of model storage.

Conclusion

From the analysis and discussion of results following conclusions can be drawn from this study:

  1. Plaster models, CBCT models, and models obtained from a laser scan of impressions are three different diagnostic records. Each has its advantages and disadvantages.

  2. The present study shows that models obtained from laser scanned impressions are comparable to plaster models. The accuracy is adequate for initial diagnosis and treatment planning in clinical orthodontics.

  3. The difference between the plaster models and models obtained from laser scanned impressions using IDENTICA BLUE was clinically insignificant.

  4. The models obtained from CBCT scan of the patient were also accurate and comparable to plaster models except for the few values. The inaccuracy occurred due to some errors which can be eliminated.

  5. The difference between few parameters CBCT models and plaster models was statistically significant but within the range of error found in this and other studies, and was considered clinically insignificant.

  6. To generalize, an excellent correlation was found between Plaster models, Digital models derived from CBCT, and Laser scan of impression.

  7. The accuracy and reliability of digital models provide general clinicians an alternative to plaster models.

It seems reasonable to conclude that our objective of comparing accuracy and reliability of linear measurements on digital models derived from a laser scan of impressions and CBCT scan of a patient with plaster models is achieved where plaster models will be very soon obsolete and revolutionized by digital models.
